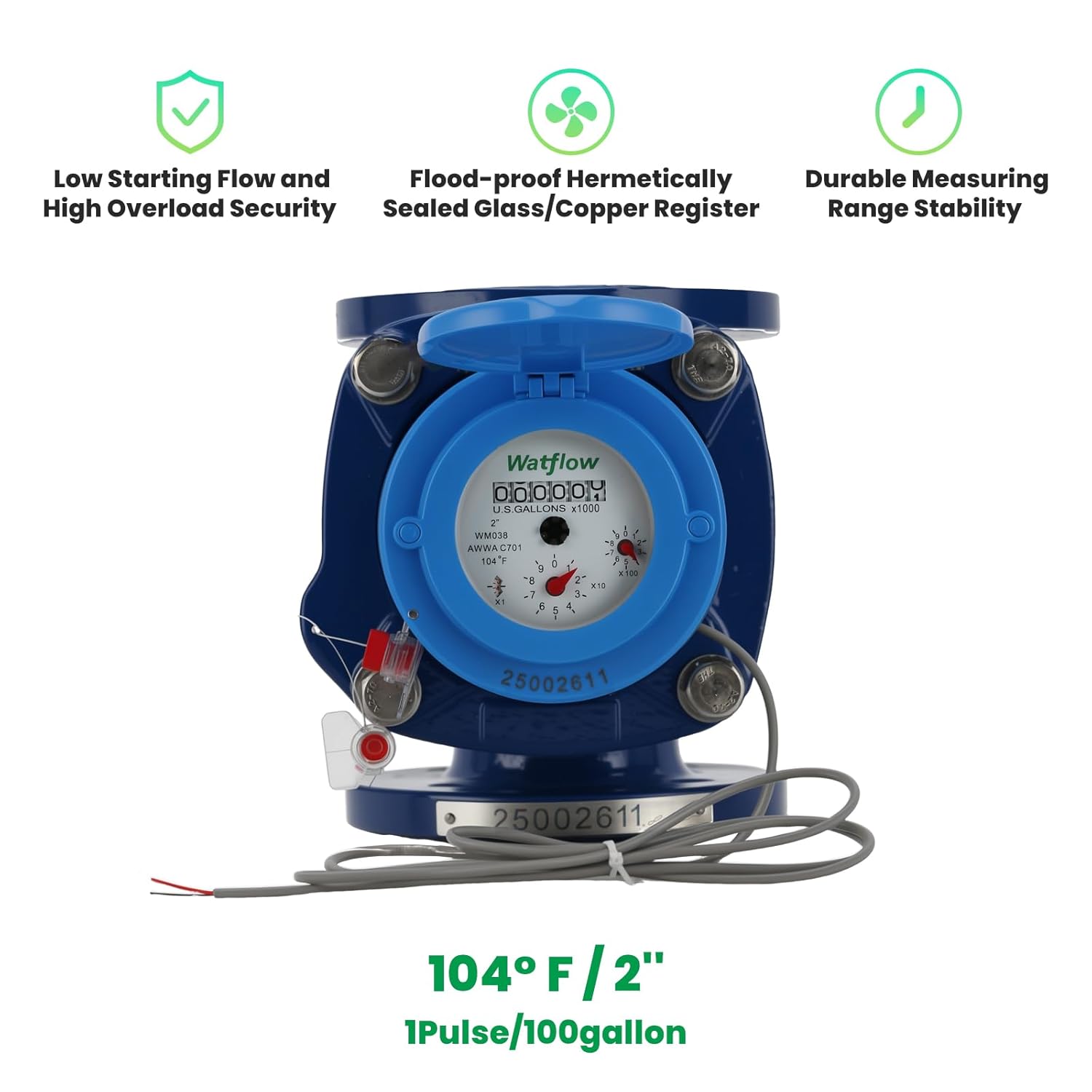

Watflow 2" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（GAL,Non-Potable Use）
Product details
| Management number | 221589754 | Release Date | 2026/05/03 | List Price | $112.00 | Model Number | 221589754 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DescriptionWatflow 2" GAL WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seal, Non-Potable Use.ACCURATE MONITORING:Cold water meter: ±2% at nominal/intermediate and maximum flow, ±5% at minimum flow rate to transition flow rate.Maximum Flow Rate: 160 GPM, Nominal Flow Rate: 25 GPM, Minimum Flow Rate: 4GPM. Pressure: 200PSIG. Temp:-20 to 150 ℉Horizontal Installation: Horizontal position with dial facing upwards or sideways. It is not recommended to have dial facing downwards. It can also be installed vertically with water flowing upwards.High materials: ABS head 360° rotation. The meter body is made of cast or ductile iron and is epoxy coated.The meter register assembly can be removed for repair orreplacement without disrupting the process flow.Pulse Connection:This is a pulse-emitting device that is magnetically actuated: a reed switch inside a plastic housing closes when a magnet mounted on a gear of the meter enters its sensing proximity, producing a pulse signal.A typical 1.5 meter (59") two-conductor cable uses wires with 3.5 mm outer diameter. One conductor is insulated in red and the other in black.Max Voltage: 24V AC/DC Max Current: 0.01 A. 1GA/100GAL
- ACCURATE MONITORING:Cold water meter: ±2% at nominal/intermediate and maximum flow, ±5% at minimum flow rate to transition flow rate
- Maximum Flow Rate: 160 GPM, Nominal Flow Rate: 25GPM, Minimum Flow Rate: 4GPM. Pressure: 200PSIG Temp:-20 to 150 ℉
- Horizontal Installation: Horizontal position with dial facing upwards or sideways. It is not recommended to have dial facing downwards. It can also be installed vertically with water flowing upwards.
- High materials: ABS head 360° rotation. The meter body is made of cast or ductile iron and is epoxy coated.The meter register assembly can be removed for repair orreplacement without disrupting the process flow.
- Pulse Connection:This is a pulse-emitting device that is magnetically actuated: a reed switch inside a plastic housing closes when a magnet mounted on a gear of the meter enters its sensing proximity, producing a pulse signal.
- A typical 1.5 meter (59") two-conductor cable uses wires with 3.5 mm outer diameter. One conductor is insulated in red and the other in black. Max Voltage: 24V AC/DC Max Current: 0.01 A. 1GA/100GAL
| Item Weight | 27.3 pounds |
|---|---|
| Manufacturer | Watflow |
| Package Dimensions | 12.5 x 10.2 x 9 inches |
